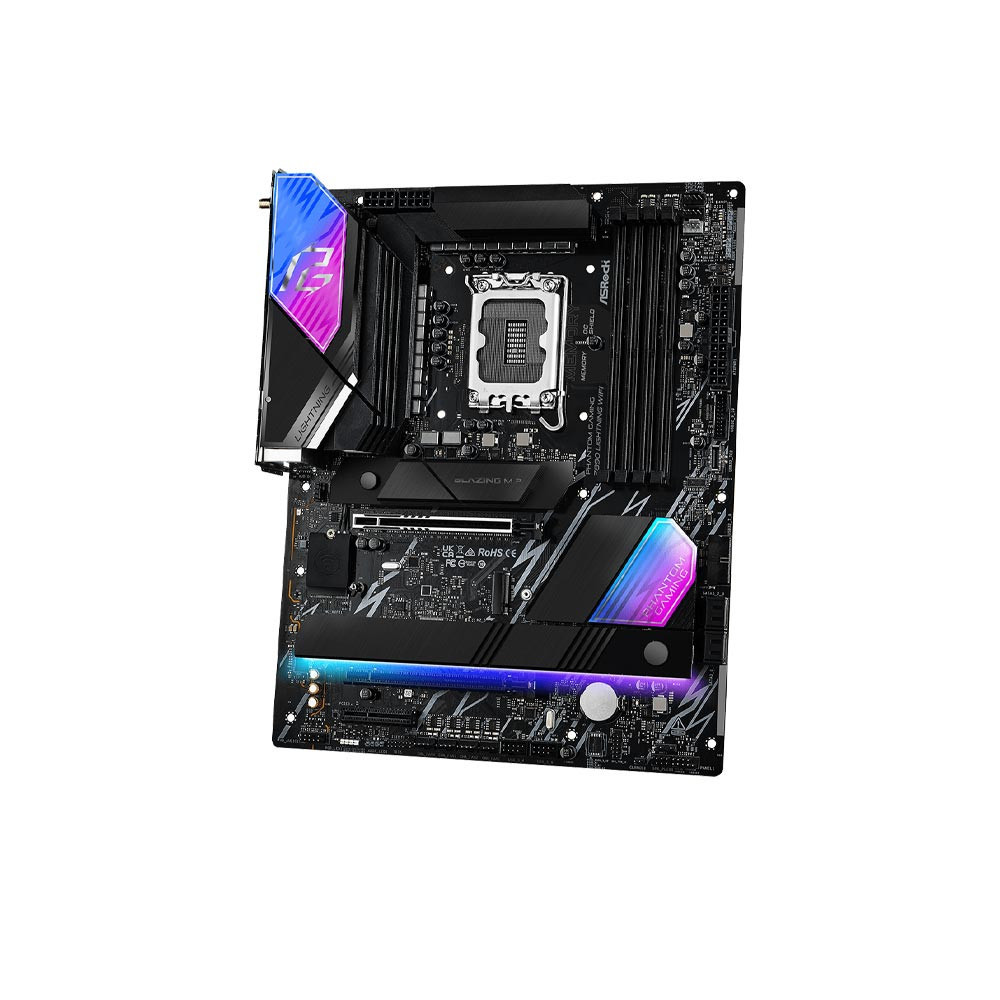

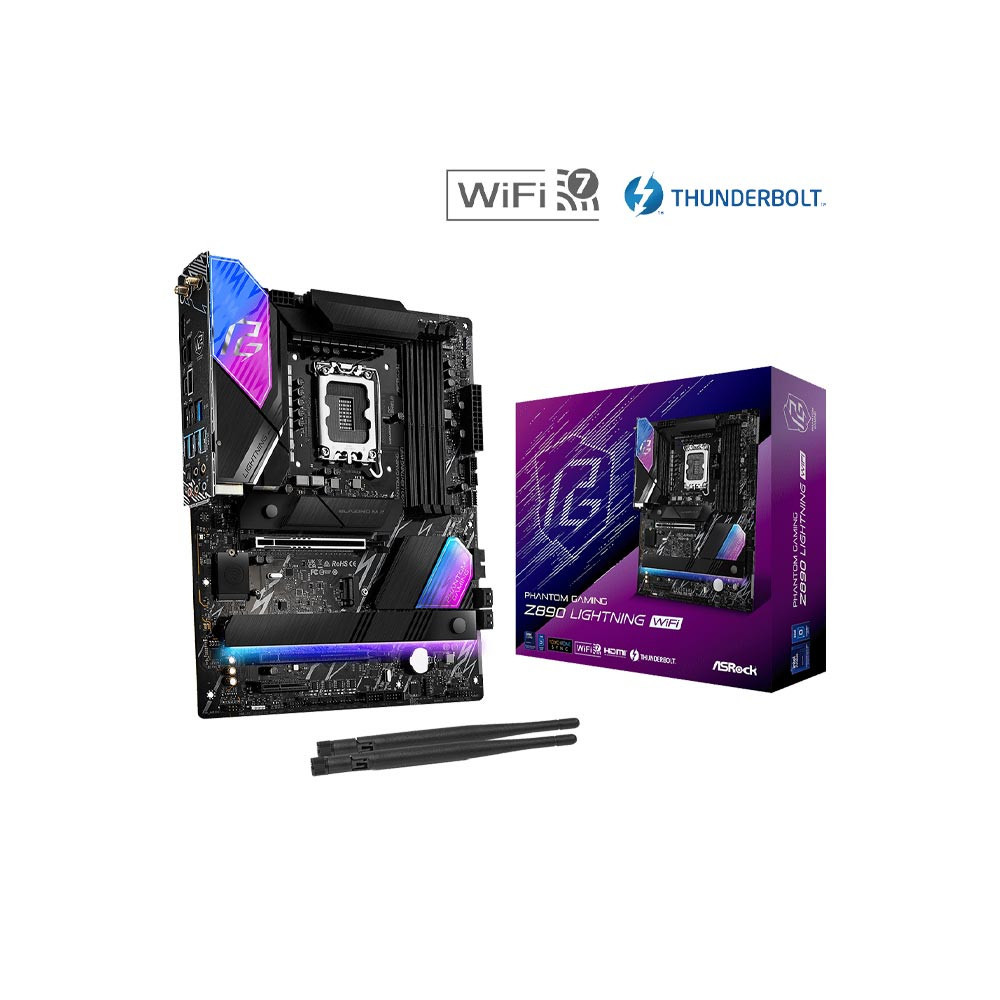

Name: Mainboard Asrock Z890 Lightning WiFi DDR5 (Wifi+Bluetooth+Thunderbolt 4)
Brand: ASROCK
SKU: 9502
Price: 9450000 VND
Availability: InStock

Mainboard Asrock Z890 Lightning WiFi DDR5

Mainboard Asrock Z890 Lightning WiFi DDR5 (Wifi+Bluetooth+Thunderbolt 4)

Tình trạng: Còn hàng

Bảo hành: 36 Tháng

Lượt xem: 1

Thông số sản phẩm

CPU: Supports Intel Core Ultra Processors (Series 2) (LGA1851RL-ILM); Supports Intel Hybrid Technology; Supports Intel Turbo Boost Max 3.0 Technology; Supports Intel Thermal Velocity Boost (TVB); Supports Intel Adaptive Boost Technology (ABT); Integrated NPU for dedicated AI acceleration; Supports ASRock Hyper BCLK Engine
Kích thước: ATX
Khe cắm RAM: 4 khe (Tối đa 256GB)
Khe cắm mở rộng: 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode; 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode; 1 x PCIe 4.0 x4 Slot (PCIE3), supports x4 mode; 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT)

Xem thêm

9.450.000đ

[Giá đã bao gồm VAT]

Liên hệ để có giá tốt nhất Mua Ngay

Đánh giá sản phẩm dịch vụ

5 lý do nên mua hàng tại máy tính cdc

✅ Giao tiếp thân thiện, phục vụ tận tâm
🛒 Đặt hàng dễ dàng, giá thành linh hoạt
🛠 Bảo hành chính hãng, bảo trì trọn đời
🚀 Giao hàng siêu nhanh, miễn phí nội thành
🎁 Gắn kết bền lâu, ưu đãi càng sâu

Hỗ trợ khách hàng

VP Hà Nội:
0983.366.022
Chi nhánh Hồ Chí Minh:
0904.672.691
Hỗ trợ kỹ thuật:
0986.862.595
Hỗ trợ bảo hành:
0977.893.186

Review sản phẩm

Mô tả sản phẩm đang được cập nhật

Câu hỏi thường gặp

Thông số kỹ thuật

Sản phảm	Bo mạch chủ
Thương hiệu	Asrock
Chipset	Intel Z890
CPU	Supports Intel Core Ultra Processors (Series 2) (LGA1851RL-ILM); Supports Intel Hybrid Technology; Supports Intel Turbo Boost Max 3.0 Technology; Supports Intel Thermal Velocity Boost (TVB); Supports Intel Adaptive Boost Technology (ABT); Integrated NPU for dedicated AI acceleration; Supports ASRock Hyper BCLK Engine
Khe cắm ram	4 khe (Tối đa 256GB)
Khe cắm mở rộng	1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode; 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode; 1 x PCIe 4.0 x4 Slot (PCIE3), supports x4 mode; 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT)
Khe cắm ổ cứng	CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode Chipset: - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode - 4 x SATA3 6.0 Gb/s Connectors
Cổng kết nối	- 1 x Thermistor Cable Header - 1 x SPI TPM Header - 1 x Power LED and Speaker Header - 1 x RGB LED Header - 3 x Addressable LED Headers - 2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control) - 5 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control) - 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control) - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) - 1 x Front Panel Audio Connector (15μ Gold Audio Connector) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
Cổng kết nối (Back Panel)	- 2 x Antenna Ports - 1 x HDMI Port - 1 x Optical SPDIF Out Port - 2 x Thunderbolt 4 Type-C Ports (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt™ protocol) - 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) - 4 x USB 3.2 Gen1 Ports - 2 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x BIOS Flashback Button - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks with LED)
LAN / Wireless	LAN: - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Killer E3100G - Supports Killer LAN Software Wireless: - 802.11be 2x2 Wi-Fi 7 Module - Supports IEEE 802.11a/b/g/n/ac/ax/axe/be - Supports 2.4GHz/5GHz/6GHz* frequency band - Supports 320MHz channel bandwidth with 6GHz* frequency band - 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.4 - Supports MU-MIMO
Kích cỡ	- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - 10 Layer PCB - 2oz Copper PCB
Xuất xứ	China
Bảo hành	36 Tháng
