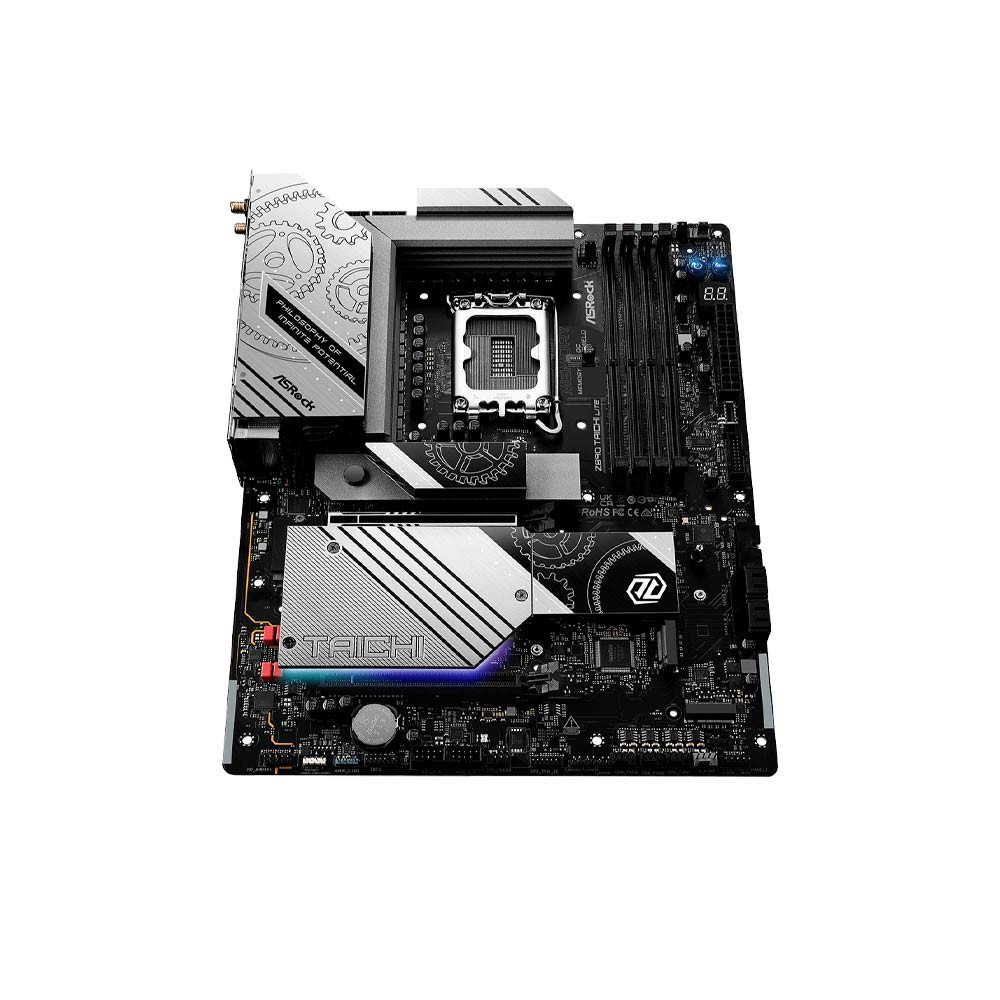

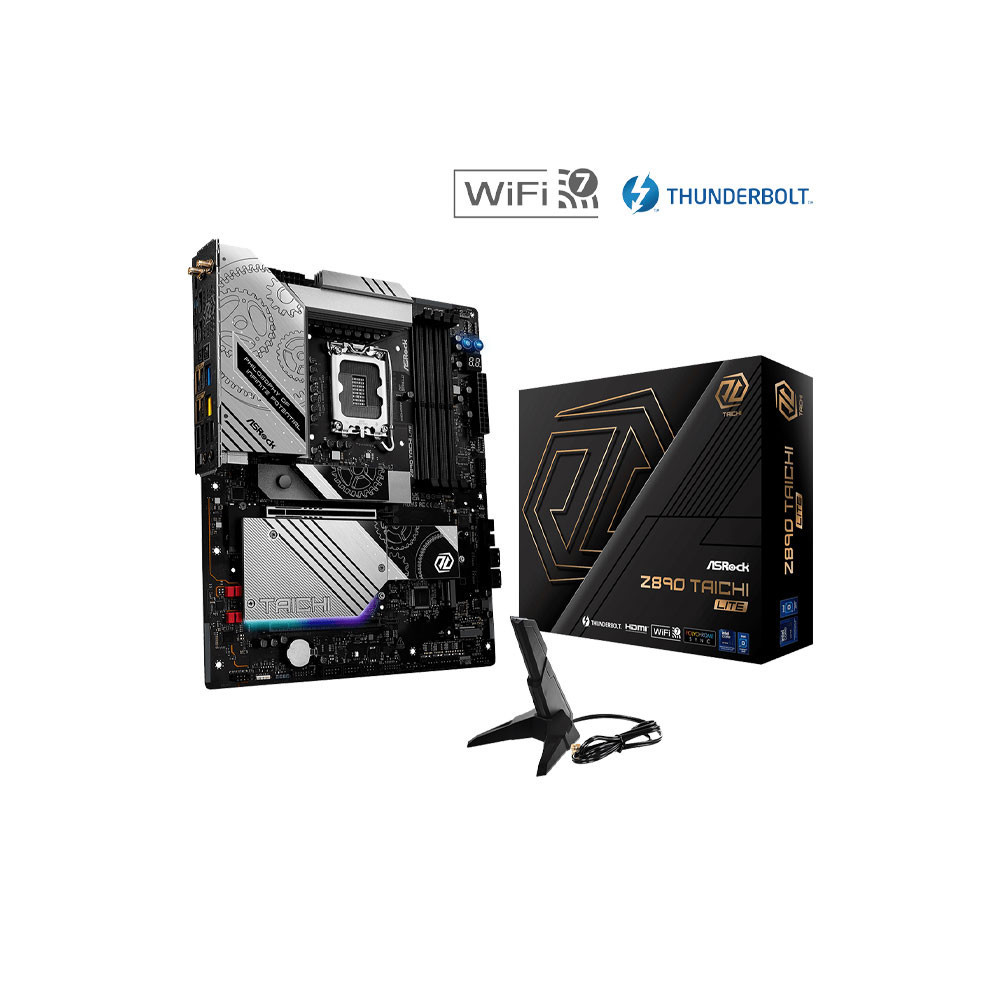

Name: Mainboard Asrock Z890 Taichi OCF DDR5 (Wifi+Bluetooth+Thunderbolt 4)
Brand: ASROCK
SKU: 9506
Availability: InStock

Mainboard Asrock Z890 Taichi OCF DDR5

Mainboard Asrock Z890 Taichi OCF DDR5 (Wifi+Bluetooth+Thunderbolt 4)

Tình trạng: Còn hàng

Bảo hành: 36 Tháng

Lượt xem: 4

Thông số sản phẩm

CPU: Supports Intel Core Ultra Processors (Series 2) (LGA1851RL-ILM); Supports Intel Hybrid Technology; Supports Intel Turbo Boost Max 3.0 Technology; Supports Intel Thermal Velocity Boost (TVB); Supports Intel Adaptive Boost Technology (ABT); Integrated NPU for dedicated AI acceleration; Supports ASRock Hyper BCLK Engine
Kích thước: ATX
Khe cắm RAM: 2 khe (Tối đa 128GB)
Khe cắm mở rộng: 1 x PCIe 5.0 x16 Slot (PCIE2), supports x16 mode; 1 x PCIe 5.0 x16 Slot (PCIE3), supports x8 mode; 1 x PCIe 4.0 x4 Slot (PCIE1), supports x4 mode; 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module; Supports AMD CrossFire; 15μ Gold Contact in VGA PCIe Slots (PCIE2 and PCIE3)

Xem thêm

Liên hệ

Liên hệ để có giá tốt nhất Mua Ngay

Đánh giá sản phẩm dịch vụ

5 lý do nên mua hàng tại máy tính cdc

✅ Giao tiếp thân thiện, phục vụ tận tâm
🛒 Đặt hàng dễ dàng, giá thành linh hoạt
🛠 Bảo hành chính hãng, bảo trì trọn đời
🚀 Giao hàng siêu nhanh, miễn phí nội thành
🎁 Gắn kết bền lâu, ưu đãi càng sâu

Hỗ trợ khách hàng

VP Hà Nội:
0983.366.022
Chi nhánh Hồ Chí Minh:
0904.672.691
Hỗ trợ kỹ thuật:
0986.862.595
Hỗ trợ bảo hành:
0977.893.186

Review sản phẩm

Mô tả sản phẩm đang được cập nhật

Câu hỏi thường gặp

Thông số kỹ thuật

Sản phảm	Bo mạch chủ
Thương hiệu	Asrock
Chipset	Intel Z890
CPU	Supports Intel Core Ultra Processors (Series 2) (LGA1851RL-ILM); Supports Intel Hybrid Technology; Supports Intel Turbo Boost Max 3.0 Technology; Supports Intel Thermal Velocity Boost (TVB); Supports Intel Adaptive Boost Technology (ABT); Integrated NPU for dedicated AI acceleration; Supports ASRock Hyper BCLK Engine
Khe cắm ram	2 khe (Tối đa 128GB)
Khe cắm mở rộng	1 x PCIe 5.0 x16 Slot (PCIE2), supports x16 mode; 1 x PCIe 5.0 x16 Slot (PCIE3), supports x8 mode; 1 x PCIe 4.0 x4 Slot (PCIE1), supports x4 mode; 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module; Supports AMD CrossFire; 15μ Gold Contact in VGA PCIe Slots (PCIE2 and PCIE3)
Khe cắm ổ cứng	CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode Chipset: - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes - 1 x Hyper M.2 Socket (M2_5, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes - 1 x Hyper M.2 Socket (M2_6, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
Cổng kết nối	- 2 x Thermistor Cable Headers - 1 x Power LED and Speaker Header - 4 x Addressable LED Headers - 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control) - 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control) - 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control) - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) - 1 x 6 pin Graphics 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector (15μ Gold Audio Connector) - 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) - 1 x Heater Header - 1 x ElmorLabs OCP Header - 1 x Dr. Debug with LED - 1 x Power Button with LED - 1 x Reset Button with LED - 1 x Retry Button - 1 x Safe Boot Button - V-Probe: 11-set of onboard voltage measurement points laid - Rapid OC Buttons: +/- buttons to adjust OC frequency - 6 x OC Switches - 1 x Slow Mode Switch - 1 x LN2 Mode Switch - 1 x NickShih's OC Profile 1 Button with LED - 1 x NickShih's OC Profile 2 Button with LED - 1 x NickShih's OC Profile 3 Button with LED

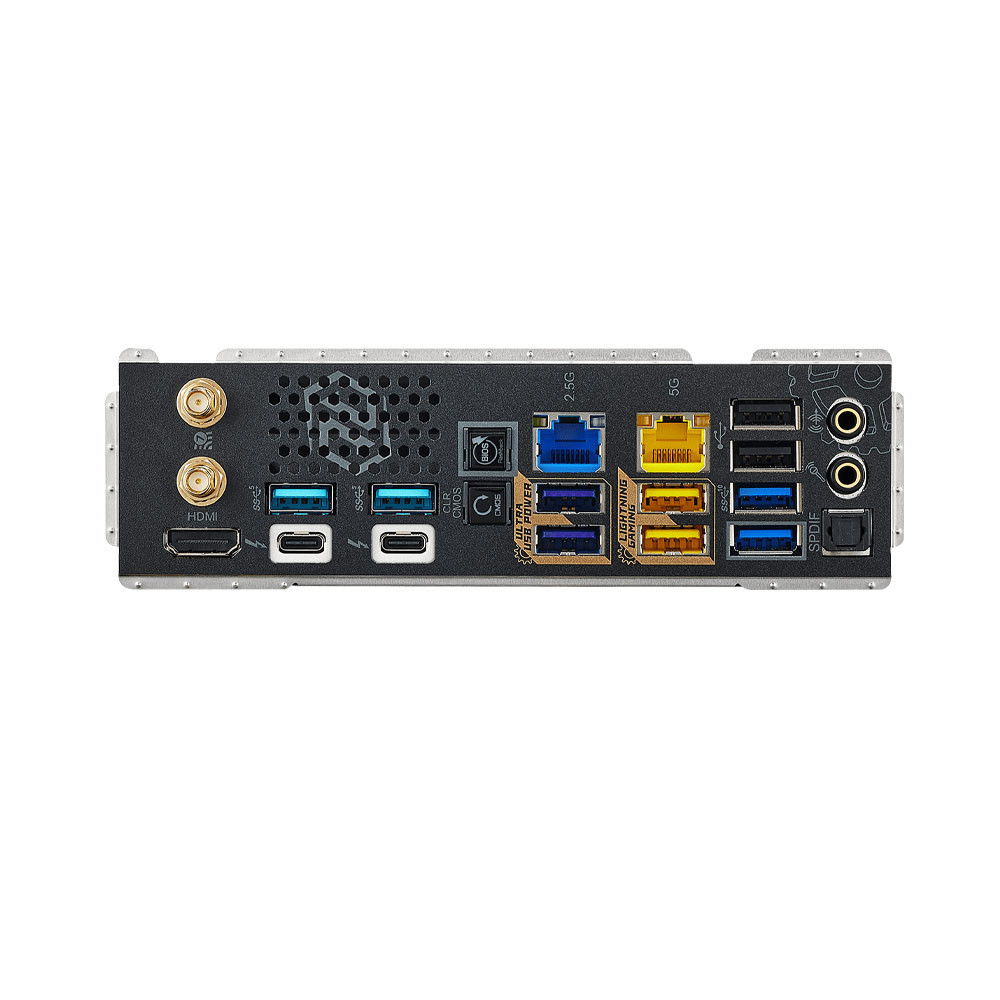

Cổng kết nối (Back Panel)	- 2 x Antenna Ports - 1 x PS/2 Keyboard Port - 1 x PS/2 Mouse Port - 1 x Optical SPDIF Out Port - 2 x Thunderbolt™ 4 Type-C Ports (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt™ protocol) - 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) - 4 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) - 1 x USB 3.2 Gen1 Port - 1 x RJ-45 LAN Port - 1 x Clear CMOS Button - 1 x BIOS Flashback Button - 1 x BIOS Selection Switch - 1 x Line Out Jack (Gold Audio Jack) - 1 x Microphone Input Jack (Gold Audio Jack)
LAN / Wireless	LAN: - 5 Gigabit LAN 10/100/1000/2500/5000 Mb/s - Realtek RTL8126 Wireless: - 802.11be 2x2 Wi-Fi 7 Module - Supports IEEE 802.11a/b/g/n/ac/ax/axe/be - Supports 2.4GHz/5GHz/6GHz* frequency band - Supports 320MHz channel bandwidth with 6GHz* frequency band - 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.4 - Supports MU-MIMO
Kích cỡ	- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - 10 Layer PCB - 2oz Copper PCB
Xuất xứ	China
Bảo hành	36 Tháng
