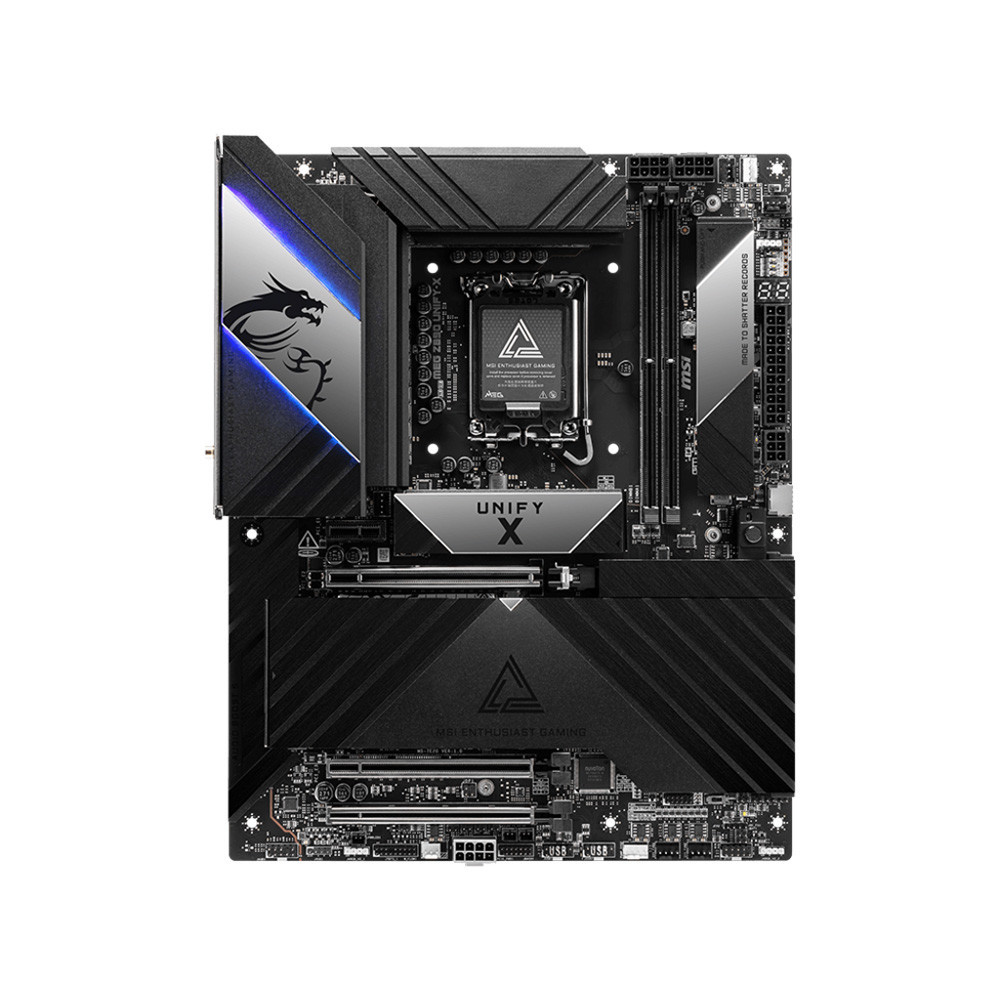

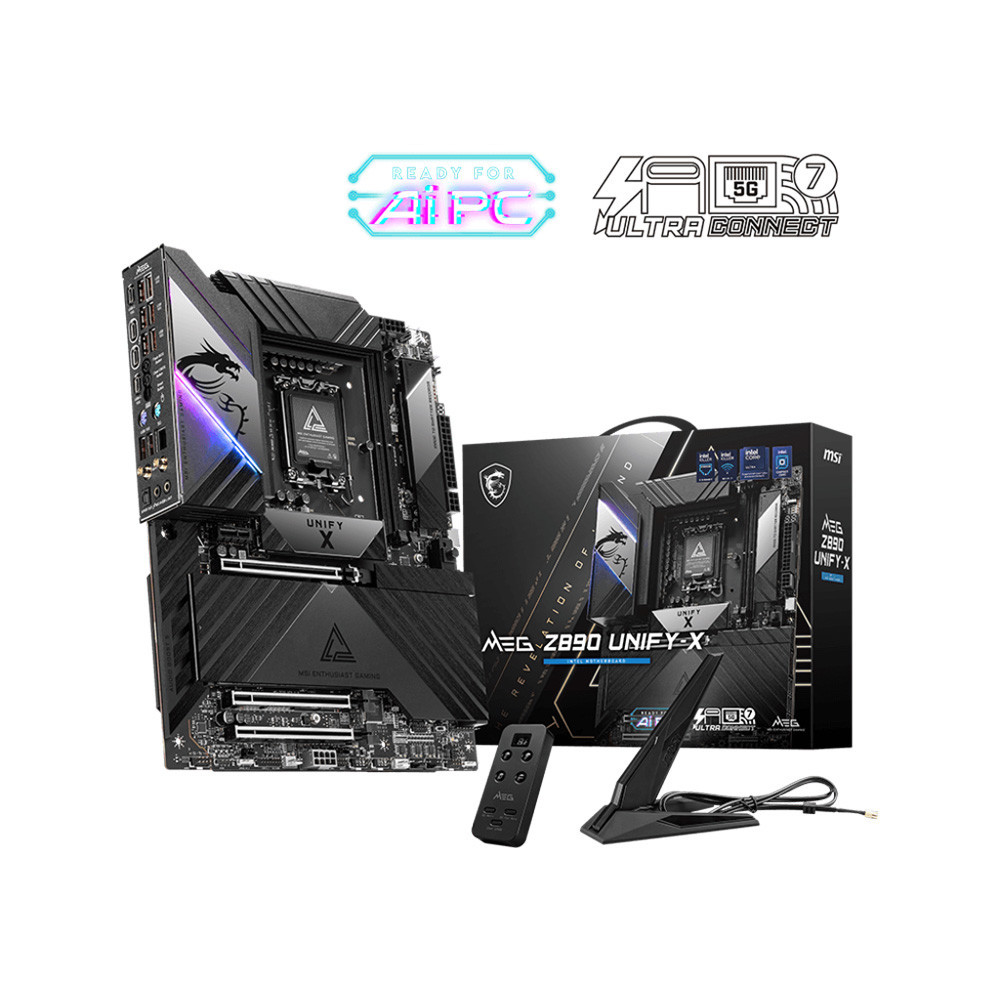

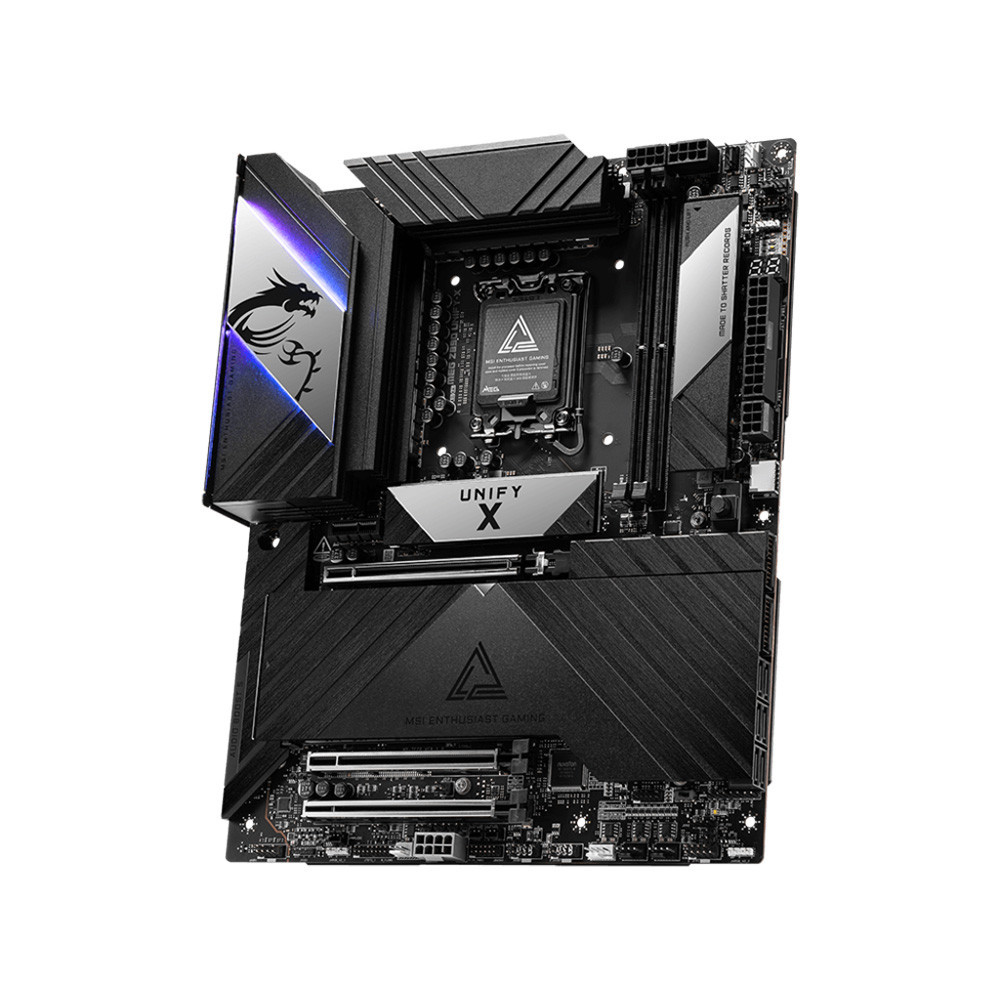

Mainboard MSI Z890 UNIFY-X DDR5

2 khe (Tối đa 128GB)

6x M.2, 6x SATA 6G

1x Thunderbolt5 card connector(JTBT5, support RTD3)
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x Front Type-C Quick Charge Connector(PD_PWR1)
1x CPU Fan
2x Combo Fan (Pump_Sys Fan)
4x System Fan
1x EZ Conn-header (JAF_2)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Water Flow connector
1x Slow Mode Booting Jumper(JSLOW)
1x Front Audio (JAUD)
2x Thermal Sensor connectors(T_SEN)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
V-check point
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports

 1x Intel® Killer E5000B 5G LAN

Intel® Killer™ BE1750x Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth® 5.4**, MLO, 4KQAM

2x Thunderbolt4 ports (Rear)
Support up to 40Gbps transfer rate with Thunderbolt devices
Support up to 20Gbps transfer rate with USB4 devices
Support up to 10Gbps transfer rate with USB 3.2 devices
Support up to 5V/3A,15W power charging
Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
Support up to 8K display

4x USB 2.0 (Front)
4x USB 5Gbps Type A (Front)
8x USB 10Gbps Type A (Rear)
2x USB 10Gbps Type C (Rear)
1x USB 20Gbps Type C (Front)

ATX
243.84mmx304.8mm
