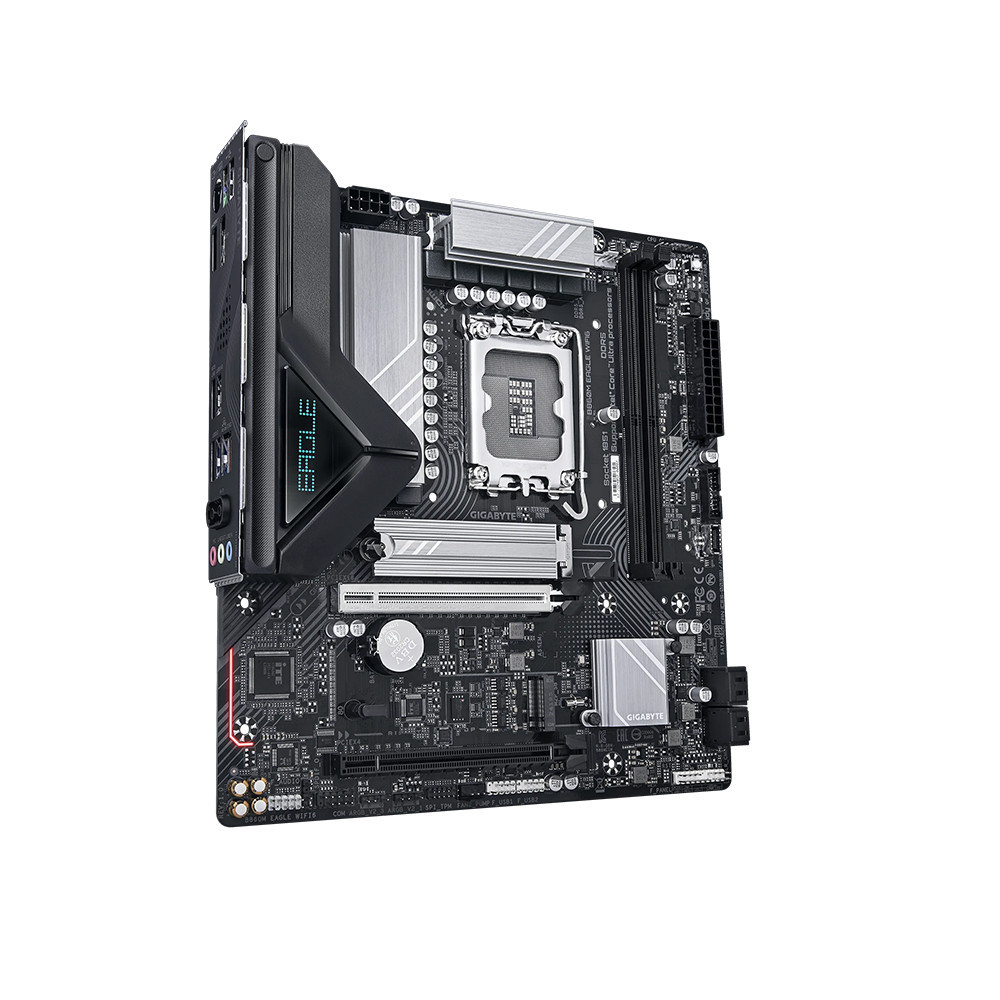

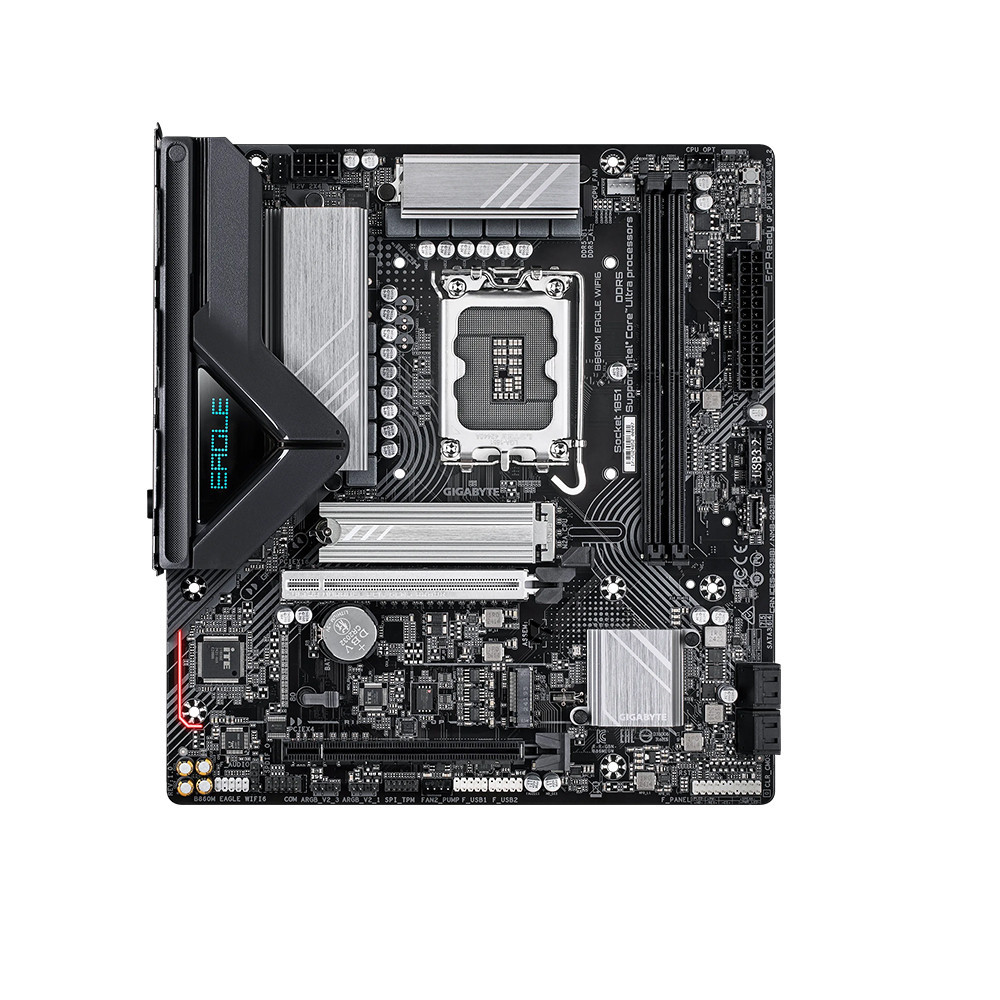

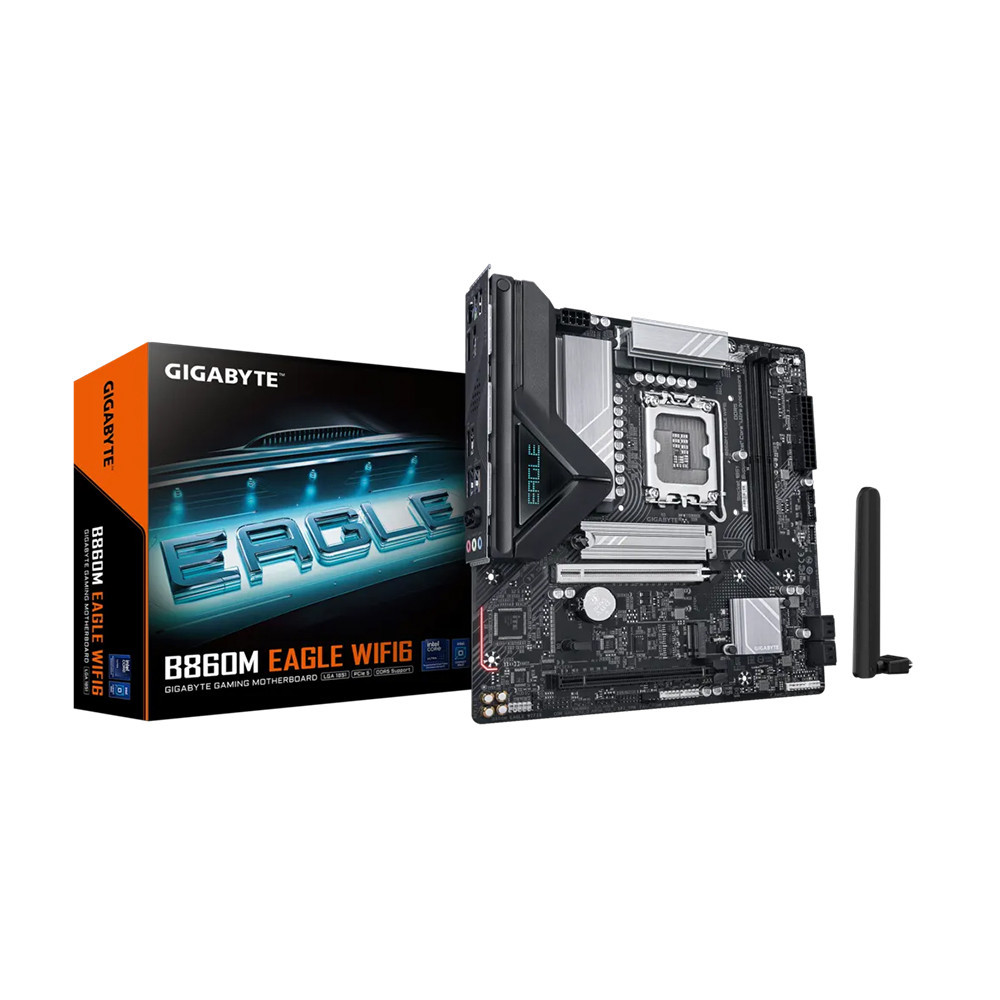

Mainboard Gigabyte B860M EAGLE WIFI6 DDR5

Mainboard Gigabyte B860M EAGLE WIFI6 DDR5

Mainboard Gigabyte B860M EAGLE WIFI6 DDR5

Tình trạng: Còn hàng
Bảo hành: 36 Tháng
Lượt xem: 2
Thông số sản phẩm
  • Chipset: Intel B860
  • Socket: LGA1851 socket: Support for Intel ® Core™ Ultra Processors
  • Kích thước: Micro ATX
  • Khe cắm RAM: 2 x DIMM slots, max. 128GB, DDR5
  • Khe cắm mở rộng: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16), 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
  • Khe cắm ổ cứng: 2 x M.2 connectors, 4 x SATA 6Gb/s connectors
Xem thêm
4.150.000đ
[Giá đã bao gồm VAT]
Đánh giá sản phẩm dịch vụ

5 lý do nên mua hàng tại máy tính cdc

  • ✅ Giao tiếp thân thiện, phục vụ tận tâm
  • 🛒 Đặt hàng dễ dàng, giá thành linh hoạt
  • 🛠 Bảo hành chính hãng, bảo trì trọn đời
  • 🚀 Giao hàng siêu nhanh, miễn phí nội thành
  • 🎁 Gắn kết bền lâu, ưu đãi càng sâu

Hỗ trợ khách hàng

Review sản phẩm

Mô tả sản phẩm đang được cập nhật

Câu hỏi thường gặp

Thông số kỹ thuật

Sản phảm Bo mạch chủ
Thương hiệu Gigabyte
Chipset Intel B860
CPU  Intel
Socket LGA1851 socket: Support for Intel® Core™ Ultra Processors
Khe cắm  ram 2 x DIMM slots, max. 128GB, DDR5
Khe cắm mở rộng 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16), 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Khe cắm ổ cứng 2 x M.2 connectors, 4 x SATA 6Gb/s connectors
Cổng kết nối
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
1 x system fan header
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
Cổng kết nối (Back Panel) 1 x PS/2 keyboard/mouse port
1 x HDMI port*
1 x DisplayPort*
3 x USB 3.2 Gen 1 ports
3 x USB 2.0/1.1 ports
2 x antenna connectors (2T2R)
1 x RJ-45 port
3 x audio jacks
LAN

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Realtek® Wi-Fi 6 RTL8851BE
- WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 80MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)

Kích cỡ Micro ATX Form Factor; 24.4cm x 22.5cma
Xuất xứ China
Bảo hành  36 Tháng
